The Sungrow SBR192 is a high-voltage battery with Lithium Ferro Phosphate (LFP) cells. These cells are Cobalt-free and are known as the safest and most durable battery chemistry currently available. This also makes this type of home battery more environmentally friendly and future-proof.
Sungrow's SBR192 battery is modular, compact in size, and designed for direct use. It offers flexible capacity ranging from 9.6kWh to 102.4kWh. When combined with the three-phase Sungrow hybrid inverters, this battery can operate within a range of 5-50kW.
Through the Sungrow app, users have access to all essential information regarding their solar panel energy production and stored energy management. Both the inverter and the battery can be initialized with a single click, enabling automatic commissioning and real-time yield management.
Features of the Sungrow SBR192 Lithium-ion Home Battery

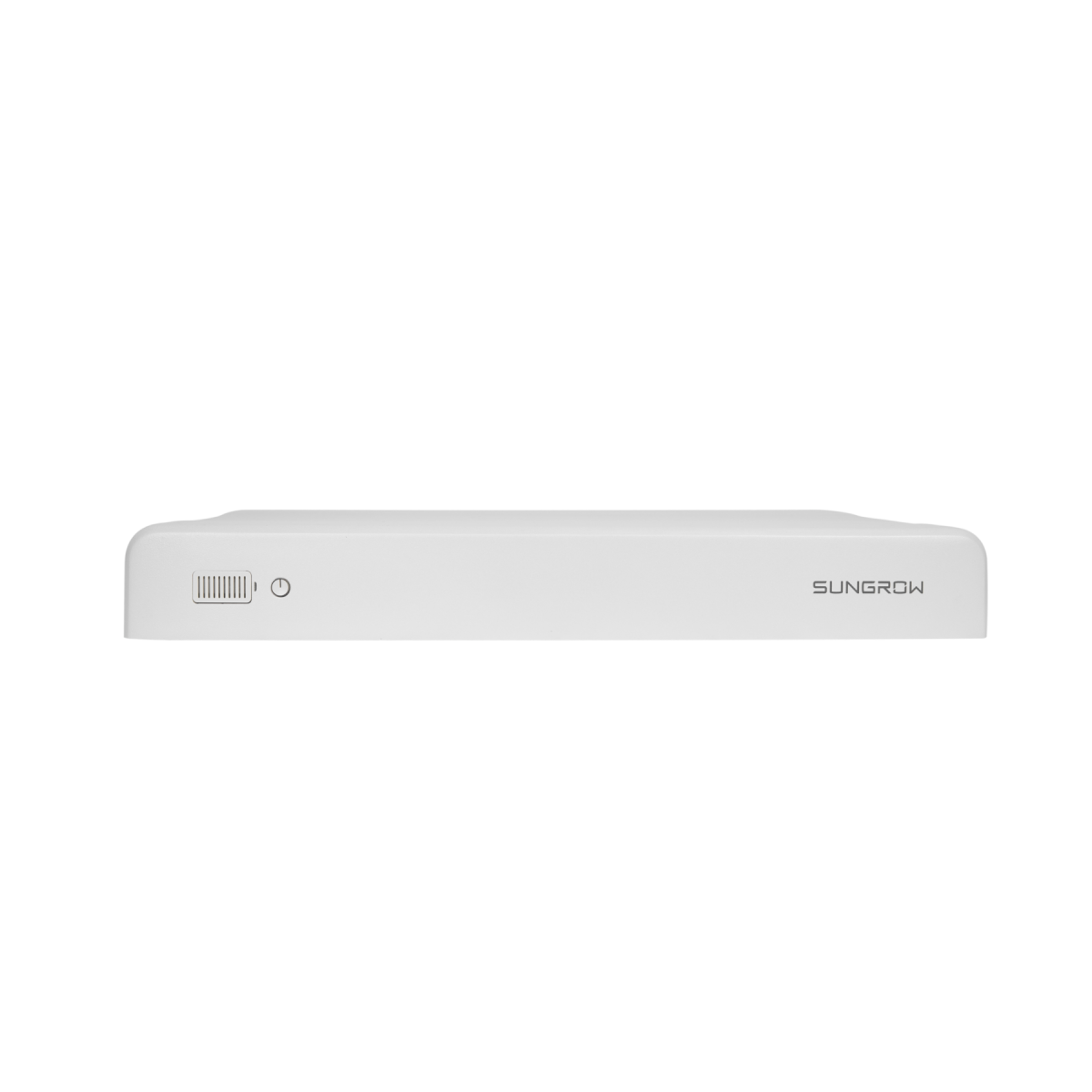

The Sungrow SBR192 Lithium-ion home battery is suitable for housing six battery modules. The battery has a nominal capacity of 19.2kWh and a Nominal DC power of 11.52 kWh. The nominal voltage is 384V.
The Sungrow SBR192 home battery has an IP rating of 55, allowing the battery module to be placed both indoors and outdoors. Using the Plug & Play principle, the battery can be easily connected to an existing solar panel system with a hybrid inverter.
In brief
- Battery Type: LiFePO4 prismatic cell
- Nominal Capacity: 19.2 kWh
- Usable Capacity: 19.2 kWh
- Nominal Voltage: 384 V
- Operating Voltage: 300 Ð 438 V
- Nominal DC Power: 11.52 kW
- Max. Charge/Discharge Power: 13.14 kW
- Max. Charge/Discharge Current (Continuous): 30 A
- Max. Charge/Discharge Current (10s Pulse): 42 A
- Depth of Discharge: 100%
- Short Circuit Current: 1700 A
Specifications
| SKU |
SBR192 |
| Promotion |
Full set |
| Brand |
Sungrow |
| Manufacturer |
Sungrow |
| Country of manufacture |
China |
| Warranty in Years |
10 |
| Voltage Battery |
High |
| Model |
Lithium Iron Phosphate |
| Usable battery capacity (kWh) |
19.2 |
| Rated voltage (V) |
384 |
| Max. voltage (V) |
438 |
| Depth of Discharge |
100% |
| Degree of protection (IP) |
IP55 |
| Width (mm) |
625 |
| Height (mm) |
935 |
| Depth (mm) |
330 |
| Weight (kg) |
213 |
Downloads
Click to Download
Installation guide Sungrow SBR Battery Module
User manual Sungrow SBR Battery Module
CE Conformity Sungrow SBR Battery Module
EU Declaration of Conformity Sungrow SBR Battery Module
IEC62040 Conformity Sungrow SBR Battery Module
IEC62619 Certificate Sungrow SBR Battery Module
Material safety Sungrow SBR Battery Module
VDE2510-50 Confirmation letter Sungrow SBR Battery Module
Datasheet Sungrow SBR Battery Module
