Please note this inverter is NOT optimizer compatible
The Sungrow 1PH Hybrid Inverter 3.6kW (SH3.6RS) is a single-phase inverter for small residential installations. The inverter is part of a series, with variants available in capacities of 3, 3.6, 4, 5, and 6 kW.
The SH3.6RS is suitable for solar installations with a maximum PV input power of 10,700Wp. This inverter has a maximum European efficiency of 97.1%. The battery has a wide voltage range of 80~460 V.

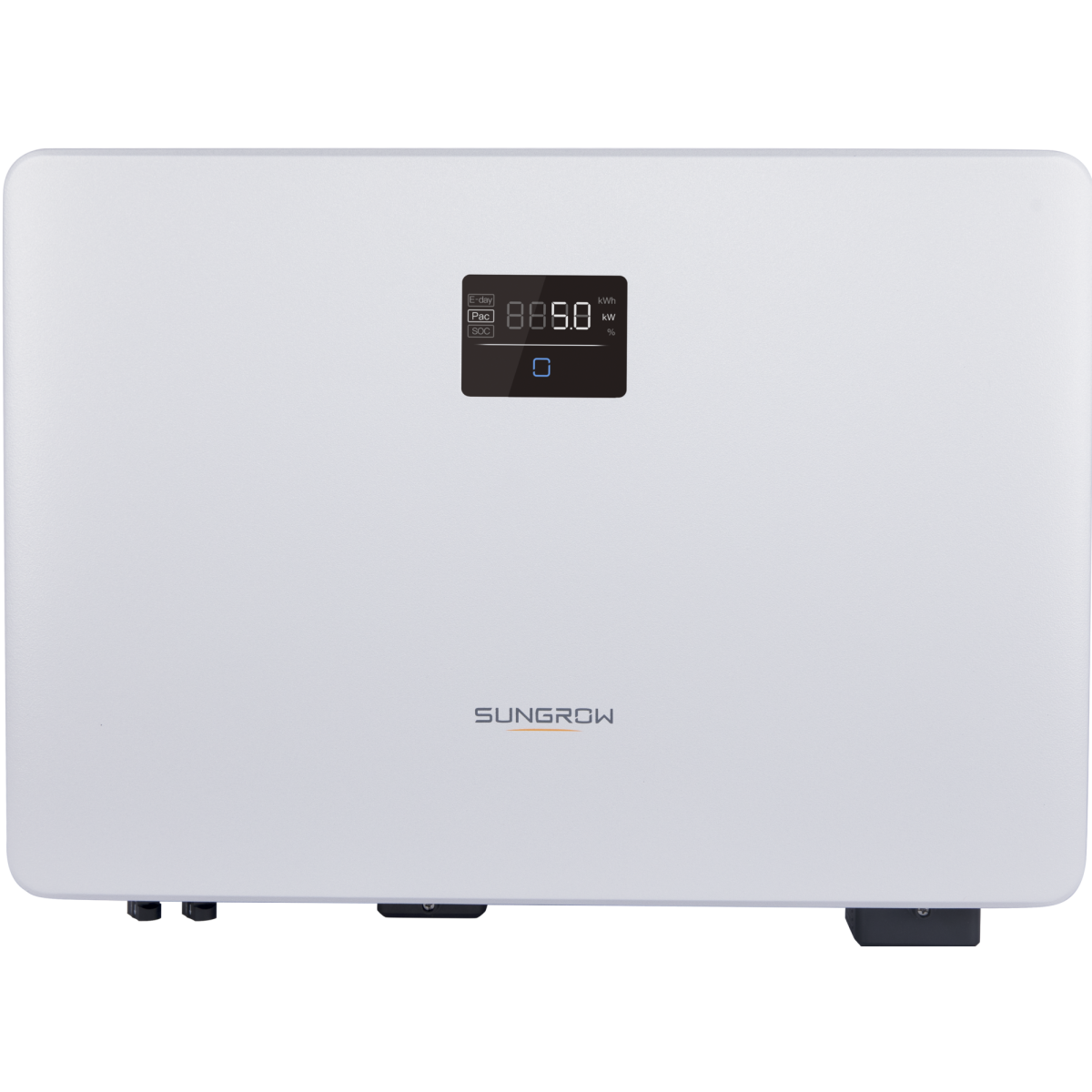

Sungrow SH3.6RS hybrid inverter with battery
This inverter is, of course, suitable for exchanging energy with the electricity grid, but it also offers the option to integrate a home battery. The hybrid Sungrow SH3.6RS is configured in such a way that in the event of a power outage, a seamless transition occurs to the stored energy in the battery.
The monitoring of system performance is displayed in real-time (refreshing every 10 seconds), and with 24/7 live monitoring - both online and with integrated display - the user is always informed about the performance and any faults.
Sungrow SH3.6RS benefits
- Plug & play installation
- iSolarCloud monitoring available via app and internet
- Battery with wide voltage range of 80~460 V
- Ideal for both upgrades of an existing system and new installations
- 24/7 live system monitoring, both online and with integrated display
Specifications
SKU |
SH3.6RS |
Promotion |
Special promo |
Brand |
Sungrow |
Manufacturer |
Sungrow |
Country of manufacture |
China |
Warranty in Years |
10 |
HS-code |
85044085 |
Inverter type |
Hybrid |
Number of phases |
Single phase |
Max. DC- input capacity (W) |
10700 |
AC-nominal output power |
3680 |
Number of MPPT |
2 |
Degree of protection (IP) |
IP65 |
Suitable for outdoor mounting |
Yes |
DC Switch |
Yes |
Surge protection |
Type II DC & AC |
Arc-fault circuit interrupter (AFCI) |
No |
Transformer |
No |
Display |
Yes |
WiFi |
Yes |
Ethernet |
Yes |
Width (mm) |
490 |
Height (mm) |
340 |
Depth (mm) |
170 |
Weight (kg) |
18.5 |
Downloads
Click to Download
Datasheet Sungrow 1PH Hybrid Inverter
Installation guide Sungrow 1PH Hybrid inverters
Compatibility list Sungrow accessories
Certificate Sungrow SH3.0-6.0RS EN 62109
Certificate T†V Sungrow SH3.0-6.0RS EN 62109
Certificate Sungrow SH3.0-6.0RS EN 62109-1
Certificate Sungrow SH3.0-6.0RS EN 62109-2
Certificate Sungrow SH3.0-6.0RS EN 62477
Certificate Sungrow SH3.0-6.0RS CEI
Approved batteries for Sungrow Hybrid inverters
