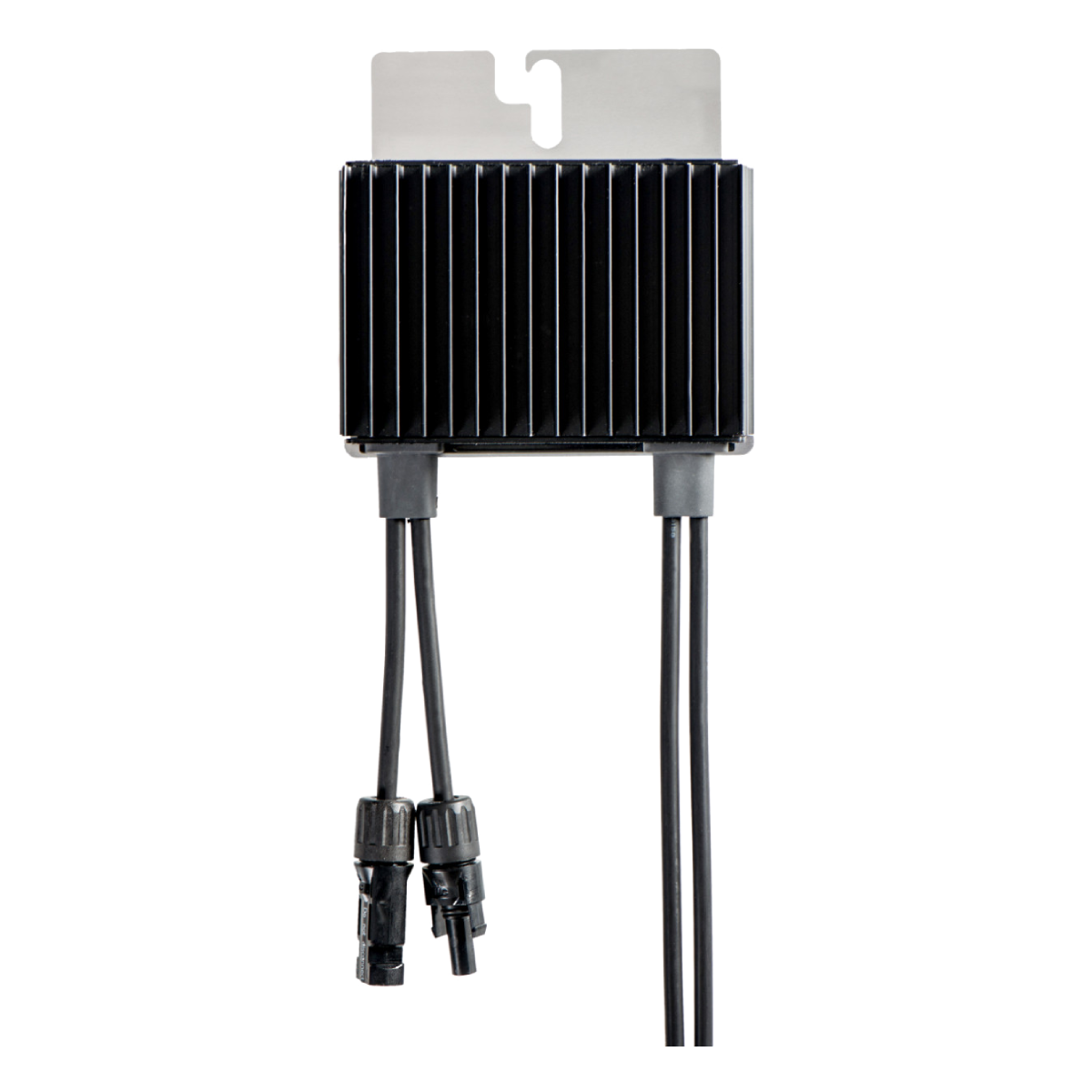

SolarEdge Power Optimizer S440-1GM4MRM

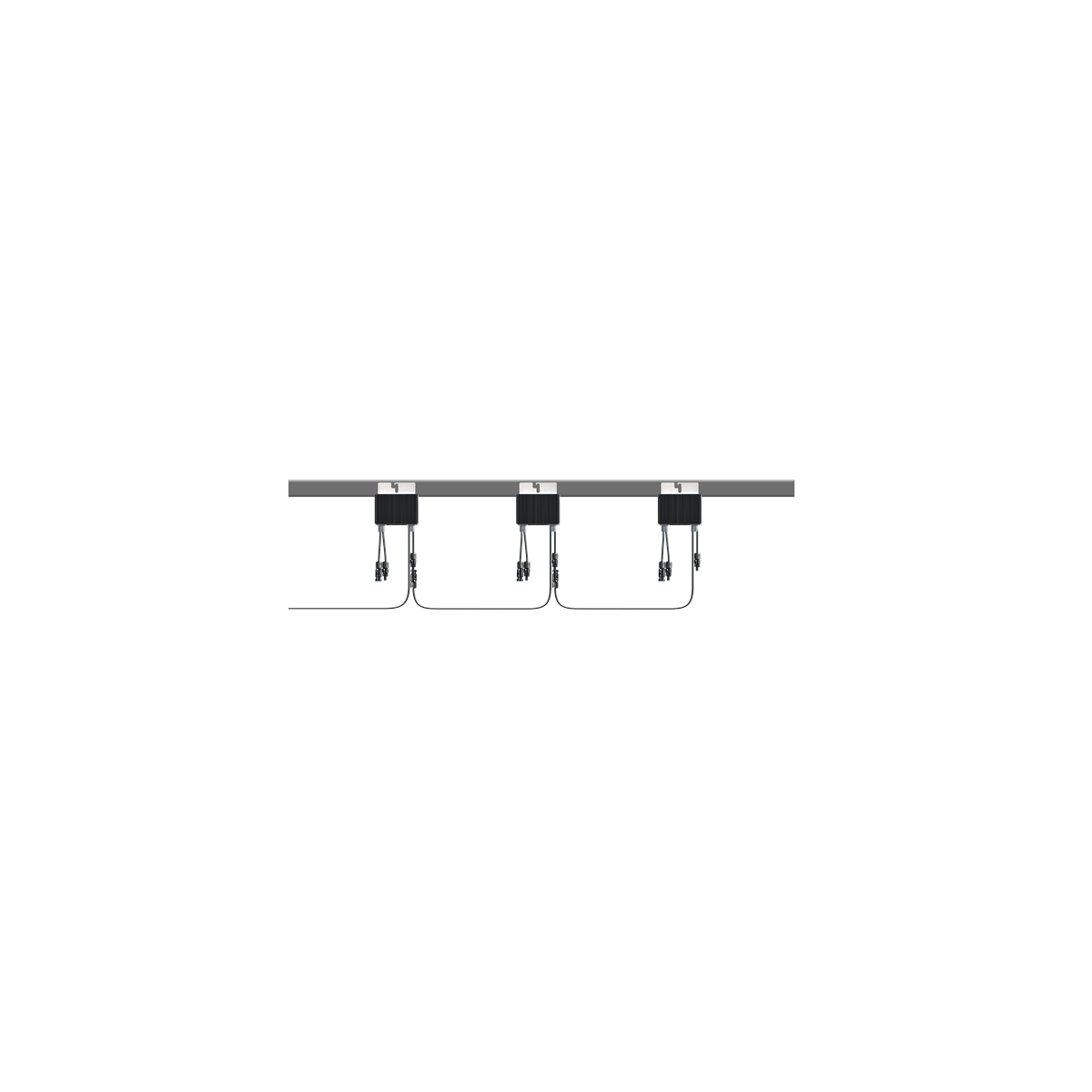

The SolarEdge S440 optimizer is a device that optimizes the energy output of solar panels. The S440 optimizer works by optimizing the output of each individual panel, since the output per panel can vary due to age, shadow, or orientation. When the solar panels are connected in a string configuration, this means loss of output from the total string.

Operation of SolarEdge S440 optimizer

The optimizer is installed on the connection box of each solar panel. The optimizer monitors the panel's output in real-time by measuring the panel's current, voltage, and temperature. This information is used to optimize the panel's power by adjusting the DC voltage and current to the panel's maximum power point (MPP).

The optimizer communicates with the SolarEdge inverter, which in turn communicates with a monitoring platform that provides real-time data and performance analysis of the system. The SolarEdge S440 optimizer also provides additional safety features, such as automatic shutdown in case of an error or fire, and arc detection to prevent electrical sparks.

By maximizing the energy output of each panel, the SolarEdge S440 optimizer can increase the total energy output of the solar panel system, making it more efficient and cost-effective.

Features of the S440 optimizer

Some of the key features of the SolarEdge S440 optimizer are:

Maximum Power Point Tracking (MPPT): The optimizer uses MPPT technology to continuously track the DC voltage and current of each solar panel and adjust it to the maximum power point, ensuring optimal energy output.

Real-time monitoring: The optimizer monitors the output of each panel in real-time and measures the current, voltage, and temperature. This data is then used to optimize the panel's power.

Increased energy efficiency: By optimizing the power of each panel in the system, the SolarEdge S440 optimizer increases the total energy efficiency of the system.

Improved safety features: The optimizer provides additional safety features, including automatic shutdown in case of a malfunction or fire, and arc detection to prevent electrical sparking.

Easy installation: The SolarEdge S440 optimizer is easy to install and is directly connected to the panel's connection box.

Monitoring platform: The SolarEdge S440 optimizer communicates with the SolarEdge inverter, which communicates with the monitoring platform to process real-time data and performance analysis of the system.

Long-term reliability: The optimizer is built with high-quality materials, ensuring reliability and performance over the long term.

Specifications

Downloads

Click to Download

Technical Note Ð SolarEdge Power Optimizer Inter-Compatibility

Datasheet SolarEdge Power Optimizer S-series

Datasheet SolarEdge Power Optimizer S440-S500-S500B-S650B

Intercompatibility SolarEdge Power Optimizers

Declaration SolarEdge Nominal voltage for Belgium

Declaration of Conformity SolarEdge Power Optimizers S series
