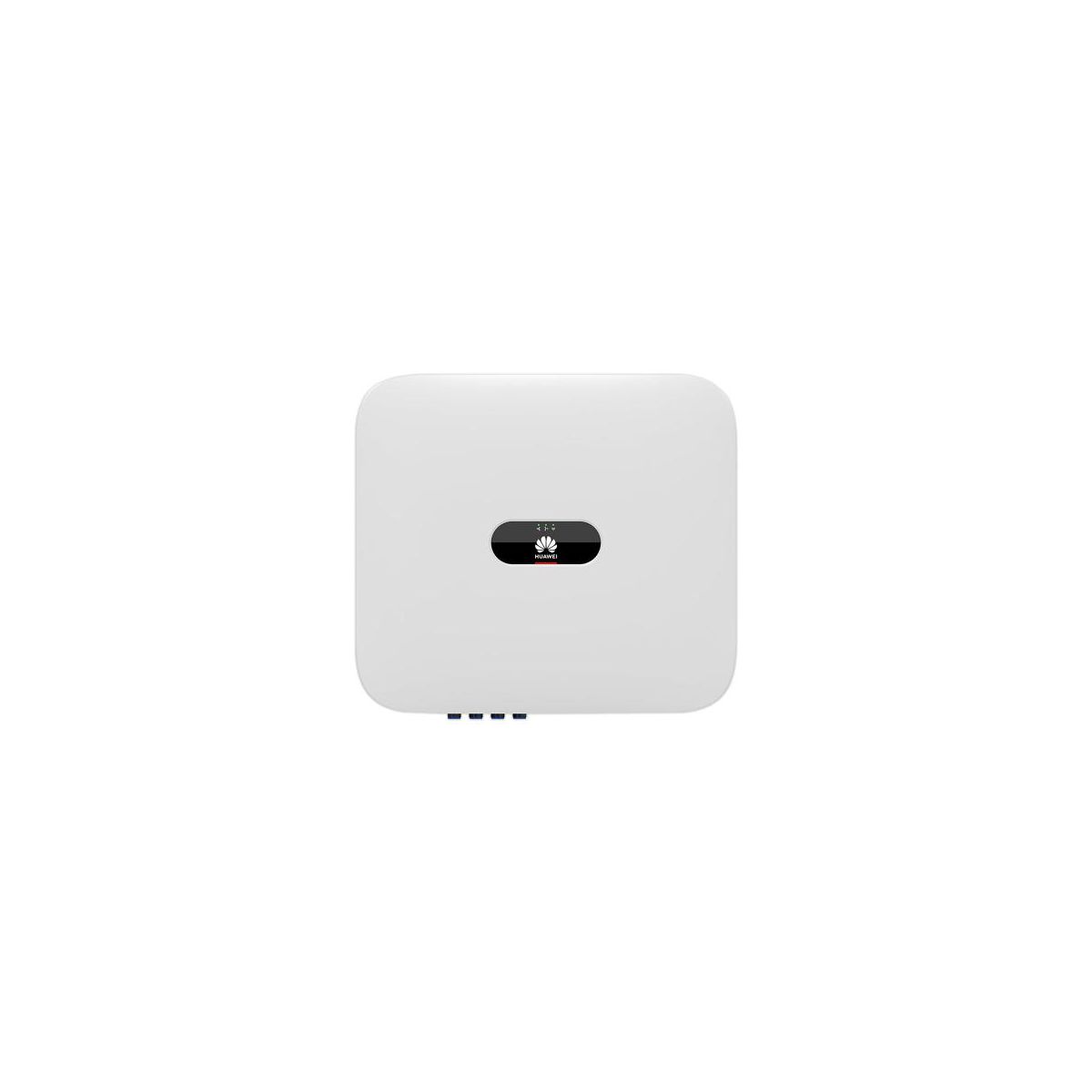

The Huawei SUN2000-20KTL-M5 is a solar inverter that stands at the forefront of energy transformation technology. With a 20 kW power output, this three-phase inverter offers a solution for both commercial and utility-scale photovoltaic systems. The Huawei inverter is designed for efficiency and maximum energy yield, and seamlessly integrates advanced features with solid reliability, ensuring a smarter and more sustainable energy future.
Key Features Huawei SUN2000-20KTL-M5
Three-Phase Inverter: The Huawei SUN2000-20KTL-M5 has a three-phase connection, making it ideal for commercial and large-scale installations.
Maximum Efficiency: Boasting a high-efficiency rate, this inverter ensures you get the maximum energy yield from your PV panels.
DC Overload Capability: With an impressive DC/AC ratio, this inverter provides exceptional overload capabilities, thereby maximising energy yields even during non-peak sunlight hours.
Digital Turbo Technology: The Digital Turbo Technology optimises the inverterÕs performance and extends its lifespan.
Multiple MPPTs: Multiple Maximum Power Point Trackers (MPPTs) ensure optimal performance even in installations with differing orientations or partial shading.
Smart IV Curve Diagnosis: The SUN2000-20KTL-M5 inverter comes with the smart feature to diagnose the IV curve, thereby simplifying O&M tasks and reducing maintenance costs.
Safety Features: With built-in residual current protection and an array of safety measures, this inverter keeps both the equipment and the operators safe.
Flexible Communication: The SUN2000-20KTL-M5 supports a variety of communication protocols, including WLAN, USB, and RS485, for easy monitoring and integration.
The Huawei SUN2000-20KTL-M5 inverter has been engineered with the installer in mind. Its compact design and straightforward connection points minimise installation time and costs. This inverter is designed to integrate effortlessly with a variety of solar panels and batteries, giving installers and system operators the flexibility to choose components that best fit their needs.
Specifications
SKU |
1076372 |
Promotion |
Special promo: _500 discount applied in cart |
Brand |
Huawei |
Manufacturer |
Huawei |
Country of manufacture |
China |
Warranty in Years |
10 |
HS-code |
85044085 |
Inverter type |
String |
Number of phases |
Three phase |
Max. DC- input capacity (W) |
30000 |
AC-nominal output power |
20000 |
Number of MPPT |
2 |
MPPT operating range (Vdc) |
200V ~ 1000V |
Degree of protection (IP) |
IP66 |
Suitable for outdoor mounting |
Yes |
Surge protection |
Type II DC & AC |
Arc-fault circuit interrupter (AFCI) |
Yes |
Display |
No |
WiFi |
Optional |
Ethernet |
Optional |
Width (mm) |
546 |
Height (mm) |
460 |
Depth (mm) |
228 |
Weight (kg) |
21 |
