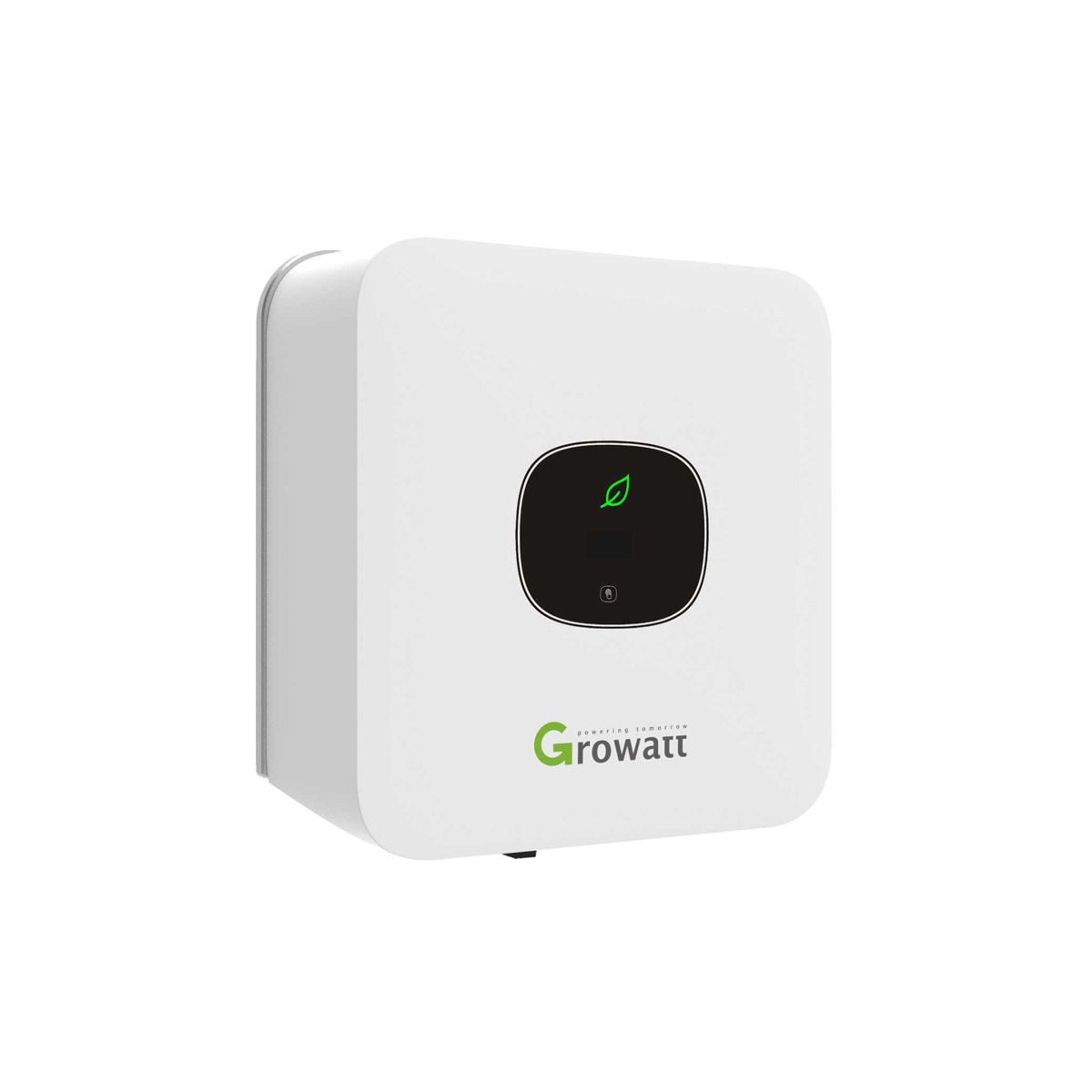

The Growatt MIC 3000TL-X(EU Model)Êis a lightweight and small inverter for residential PV installations. The maximum DC voltage, start voltage and nominal voltage are 550V, 80V and 360V consecutively. There is one MPPT with a maximum input of 13A. Various safety features are part of the inverter. A DC switch, surge protection and an AFCI option.
Lightweight and compact
The inverter weighs a little over 6kgs and is fairly small in size. This makes it easy and quickly to install by just one installer.
Safety and reliability
Growatt MIC 3000TL-X(EU Model) inverters have multiple characteristics that improve safety. The DC side has reverse polarity protection, disallowing current to flow the other direction. The DC side also has a switch to turn the system off. Both sides have a surge protection device and there is an option for an AFCI. AFCI stands for Arc Fault Circuit Interrupter. This system detects arc faults that are not because of normal usage, exceeding those parameters and as such triggering the protection device, automatically switching the device off. This prevents electric fires. Another feature is natural convection cooling rather than mechanical. Natural convection cooling has no moving parts, meaning there is less maintenance and less chance of defects.
Specifications
SKU |
GROWATT MIC 3000TL-X |
Brand |
Growatt |
Manufacturer |
Growatt |
Country of manufacture |
China |
Warranty in Years |
10 |
HS-code |
85044085 |
Inverter type |
String |
Number of phases |
Single phase |
Max. DC- input capacity (W) |
4200 |
AC-nominal output power |
3000 |
Number of MPPT |
1 |
Degree of protection (IP) |
IP65 |
Suitable for outdoor mounting |
Yes |
DC Switch |
Yes |
Surge protection |
Type II DC & AC |
Arc-fault circuit interrupter (AFCI) |
Yes |
Transformer |
No |
Display |
Yes |
WiFi |
Optional (not included) |
Ethernet |
Optional |
Width (mm) |
274 |
Height (mm) |
254 |
Depth (mm) |
138 |
Weight (kg) |
6.2 |
Downloads
Click to Download
Warranty conditions Growatt inverters EU 10 years
CE Declaration of Conformity Growatt inverters
Datasheet Growatt MIC 3000TL-X | ENG
Quick Guide Growatt MIC 3000TL-X | ENG
User Manual Growatt MIC 3000TL-X | ENG
