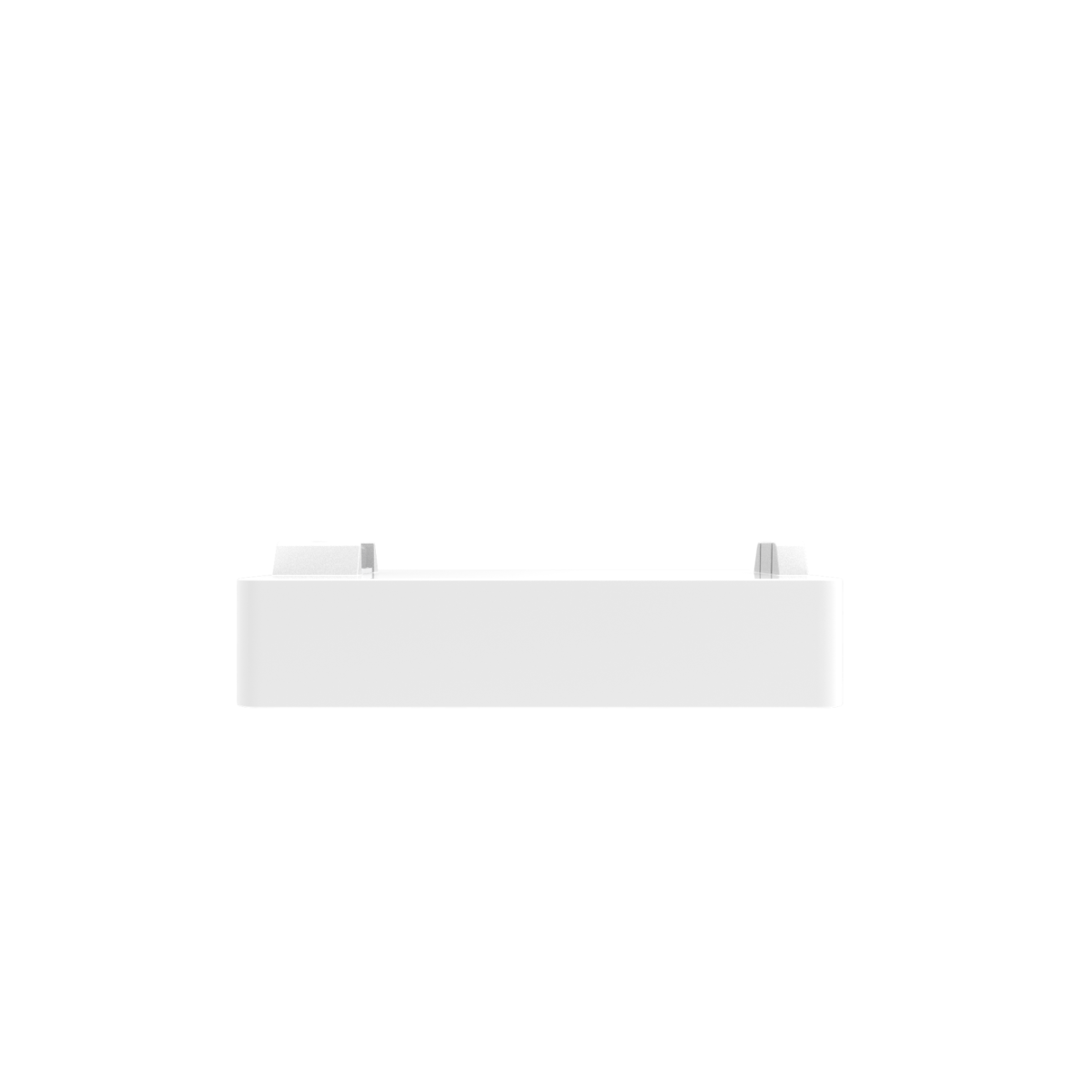

The FoxESS Energy Cube CS2900 V2.0 is a powerful, scalable solar battery storage system. Its modular design allows for maximum flexibility, making it suitable for a wide range of storage options. The battery system is suitable for home as well as commercial applications. Additional batteries can easily be installed in series, allowing for a maximum storage capacity of 20.16kWh. The installation is easy, with a plug-and-play solution that can save installers valuable time.
Features of the FoxESS Energy Cube CS2900 V2.0
High Energy Storage Capacity: The Energy Cube can store a large amount of energy through simple expansion, providing households or businesses with energy during periods of low solar output or power outages.
Compatibility with Solar Panels: The FoxESS Energy Cube CS2900 V2.0 seamlessly works with solar panels, allowing for easy installation and integration.
User-Friendly Interface: The Energy Cube features a user-friendly interface that allows for monitoring of energy consumption and stored energy, as well as configuration of settings and preferences.
Multiple Output Options: The Energy Cube has multiple outputs, such as AC and DC outputs, to power a variety of devices and appliances.
Advanced Safety Features: The FoxESS Energy Cube CS2900 V2.0 features advanced safety features such as overcharge and over-discharge protection to prevent damage to the battery and ensure safe operation.
- 2.88kWh capacity
- Scalable up to 20.16kWh
- 90% discharge depth
- High temperature tolerance
- Easy installation
- CAN/RS485 communication
- High voltage
Specifications
SKU |
30-218-20102-00 |
Brand |
FOX ESS |
Manufacturer |
FOX ESS |
Country of manufacture |
China |
Warranty in Years |
10 |
HS-code |
85076000 |
System |
FoxESS Energy Cube |
Voltage Battery |
High |
Model |
Lithium |
Usable battery capacity (kWh) |
2.88 |
Depth of Discharge |
90% |
Charge cycles |
6000 |
Operating temperature |
-10~55? |
Degree of protection (IP) |
IP65 |
Width (mm) |
570 |
Height (mm) |
350 |
Depth (mm) |
380 |
Downloads
Click to Download
Safety Data Sheet FoxESS Energy Cube CS2900
Warranty policy FoxESS batteries
Datasheet FoxESS Energy Cube 2900
