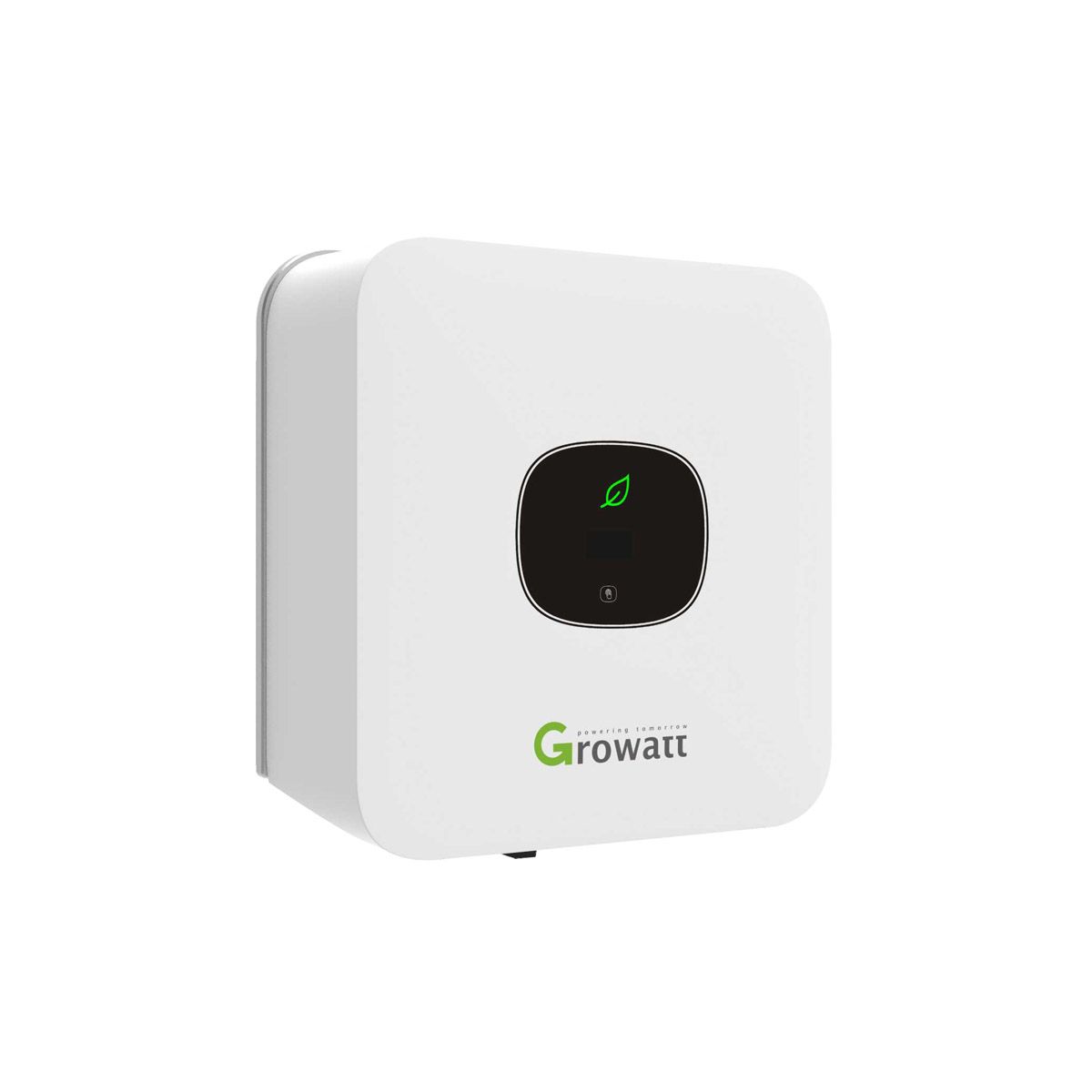

Growatt Inverter 1PH MIC 1500TL-X

The Growatt 1500TL-X is a single-phase inverter for solar energy, designed to convert the direct current generated by solar panels into usable alternating current.

Features Growatt 1500TL-X inverter

Here are some of his functions and benefits compared to other solar converters in the same category:

High efficiency: The Growatt 1500TL-X has a maximum efficiency of 97.6%, which means that it can convert a high percentage of the direct current generated by the solar panels into usable alternating current.

Compact format: The inverter is compact in size and lightweight, making it easy to install and maintain.

Low start-up voltage: The Growatt 1500TL-X can start with a low input voltage of only 65V, which makes it suitable for areas with a low solar radiation.

Multiple MPPTs: The inverter comes with two maximum Power Point Trackers (MPPTs), with which it can optimize the power of your solar panels. This is especially useful if your solar panels have Array panels that look in different directions or have different levels of shade.

Surveillance options : The inverter has a built-in monitoring system with which you can follow the performance of your solar panels and inverter in real time. You have access to this information via the Growatt ShinePhone app or the web portal.

IP65 housing : The inverter is in an IP65 housing, which means that it is protected against dust, dirt and water.

WiFi and RS485 Connectivity : The Growatt 1500TL-X has both WiFi and RS485 connectivity options, so that you can connect the inverter to your home or company network and remotely check the performance.

Advantages 1500TL-X inverter

Compared to other inverters in the same category, the Growatt 1500TL-X offers a high efficiency, a compact format and a low start-up voltage. His multiple MPPTs, monitoring options, and connectivity options also make it a versatile and user-friendly option for those looking for a single-phase solar converter.

Growatt Mic 1500TL-X: safe and reliable

The Growatt Mic 1500TL-X has various security characteristics. For example, there is security present that prevents power on the side of the other direction to flow in the other direction. There is also a switch on the DC side and on both DC and AC silk surge protection. AFCI, or ARC Fault Circuit Interruptor, is optional. Another aspect that contributes to safety is that the cooling takes place via natural convection instead of via mechanical cooling. This means there are fewer moving parts. As the number of moving parts increases, reliability will decrease, with a greater risk of malfunctions.

Specifications

Downloads

Click to Download

User Manual Growatt MIC 1500TL-X | ENG

Quick Guide Growatt MIC 1500TL-X | ENG

Datasheet Growatt MIC 1500TL-X | ENG

Warranty conditions Growatt inverters EU 10 years

CE Declaration of Conformity Growatt inverters
