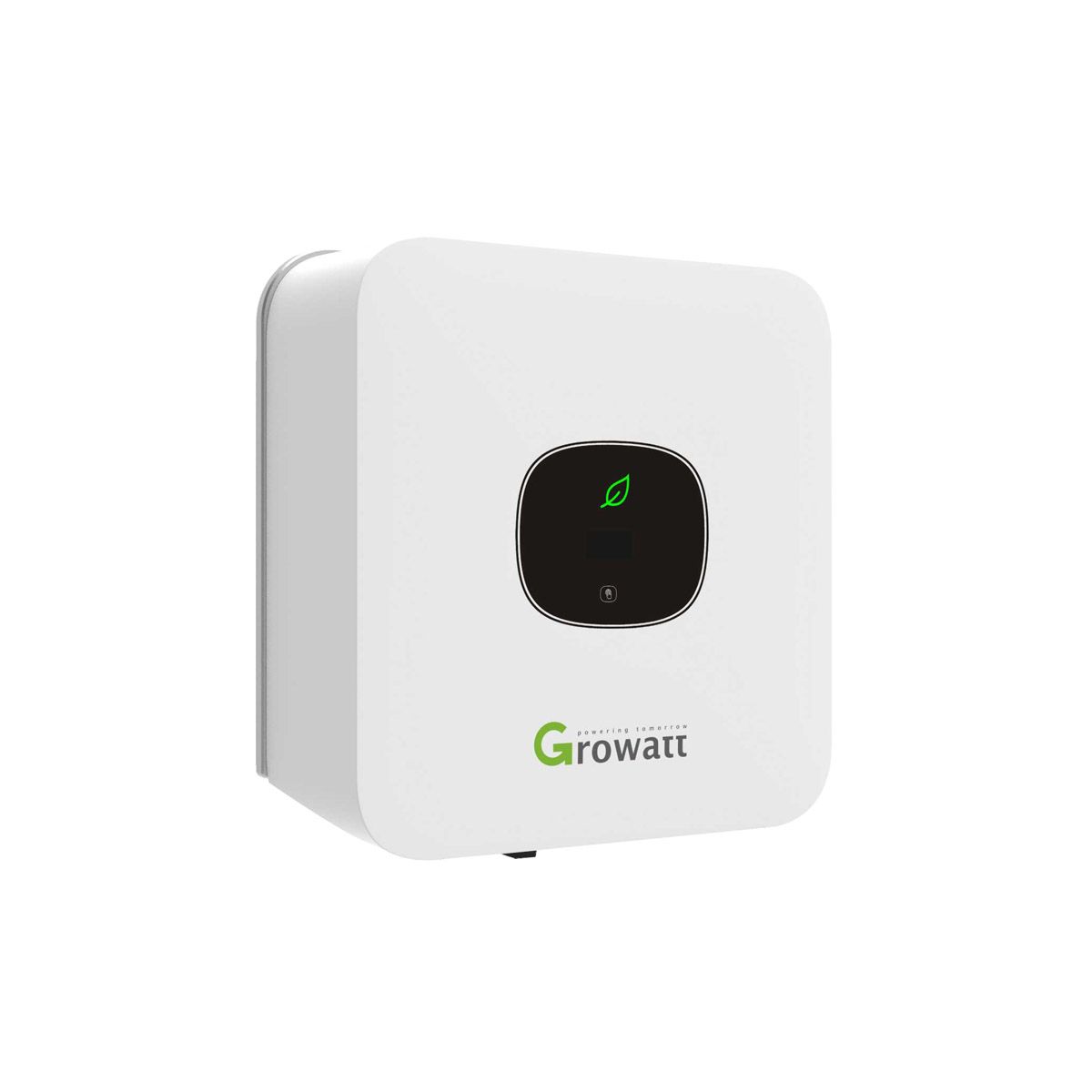

TheÊGrowatt MIC 1000TL-X is a light and compact residential inverter. The maximum DC voltage is 500V, a start voltage of 50V and a nominal voltage of 180V. There is one MPPT with a maximum input of 13A. Safety is an important aspect, accomplished with several features. Amongst these features are a DC switch, surge protection and option for AFCI.
Lightweight and compact
With just 6kgs, it's a very light inverter that's also quite compact in size. This makes the inverter easily and quickly placeable by a single installer, making it save time and money.
Safety and reliability
The Growatt MIC 1000TL-X has various safety characteristics. There is DC reverse polarity protection, a DC switch and surge protection on both sides. AFCI, or Arc Fault Circuit Interrupter, is optional. Another feature that contributes to both safety and reliability is the use of natural convection cooling, rather than a mechanical cooling system. There are less moving parts, which means less maintenance and less risk of malfunctions.
Specifications
SKU |
GROWATT MIC 1000TL-X |
Brand |
Growatt |
Manufacturer |
Growatt |
Country of manufacture |
China |
Warranty in Years |
10 |
HS-code |
85044085 |
Inverter type |
String |
Number of phases |
Single phase |
Max. DC- input capacity (W) |
1400 |
AC-nominal output power |
1000 |
Number of MPPT |
1 |
Degree of protection (IP) |
IP65 |
Suitable for outdoor mounting |
Yes |
DC Switch |
Yes |
Surge protection |
Type II DC & AC |
Arc-fault circuit interrupter (AFCI) |
Yes |
Transformer |
No |
Display |
Yes |
WiFi |
Optional (not included) |
Ethernet |
Optional |
Width (mm) |
274 |
Height (mm) |
254 |
Depth (mm) |
138 |
Weight (kg) |
6 |
Downloads
Click to Download
User Manual Growatt MIC 1000TL-X | ENG
Quick Guide Growatt MIC 1000TL-X | ENG
Datasheet Growatt MIC 1000TL-X | ENG
Warranty conditions Growatt inverters EU 10 years
CE Declaration of Conformity Growatt inverters
